LX-19014P

Intel Celeron J1900处理器, 4*COM, 9*USB, 1*LAN, 2*Mini-PCIe, 薄型Mini-ITX

采用Intel Bay Trail Celeron J1900处理器
4*COM, 9*USB, 1*千兆网口
1*VGA, 1*HDMI, 1*LVDS, 支持双屏异显
2*Mini-PCIe支持mSATA和Wifi/3G/4G
薄型Mini-ITX, DC 12V供电
规格

General

CPU : Intel® Celeron® J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W

Memory : DDR3L-1333, 1*SO-DIMM, up to 8 GB

Storage : 1*SATA 2.0, 1*mSATA

Expansion Interface : 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)

BIOS : AMI UEFI BIOS

System : Windows 7/8.1/10, Linux

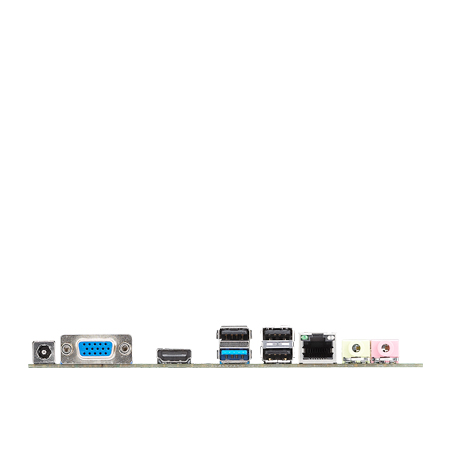

I/O Interface

Ethernet : 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45

Serial : 3*RS232, 1*RS232/TTL

USB : 1*USB 3.0, 8*USB 2.0

Audio : Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifer

PS/2 : 1*PS/2 Header (Keyboard & Mouse)

Parallel  : 1*LPT Header

GPIO : 8*Programmable GPIO

Display

Display Interface : 1*VGA: max resolution up to 2560*1600@60Hz,1*HDMI: max resolution up to 2560*1600@60Hz,1*LVDS: Dual Channel 24 bit, max resolution up to 1920*1200@60Hz

Multiple Display : Dual

Mechanical & Environment

Dimension : 170*170mm

Power Input : DC 12V

Temperature : Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity : Operation: 10%~90%, Storage: 5%~95%, non-condensing
