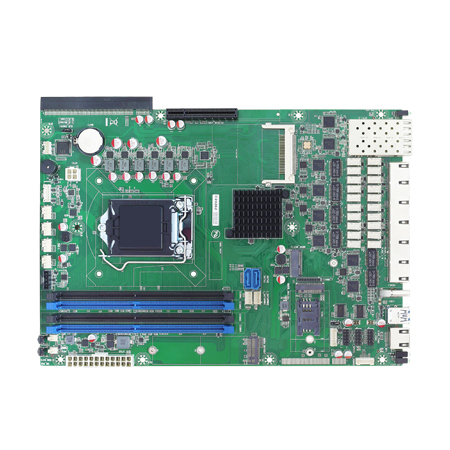

LX-H31262

Intel 8/9代Core i3/i5/i7处理器, H310/C246芯片, 2*SFP, 6*LAN, 2组三代Bypass, 3*M.2, PCIe x8/x16, TPM

支持Intel 8/9代Core i3/i5/i7处理器

可选Intel C246/H310芯片

6*千兆电口, 2*千兆光口, 2组三代Bypass

提供可选的PCIe x8和PCIe x16插槽

3*M.2支持SATA, Wifi, 4G/5G

1*HDMI, 1*VGA

驱动/资料下载

规格

General

CPU：Intel^® 8/9^th Generation Core^™ i3/i5/i7, Pentium^®, Celeron^® CPU, LGA1151

Chipset：Intel^® C246/H310, TDP 6W

Memory：DDR4-2666, 4*U-DIMM, up to 64 GB Support ECC with C246 chipset

TPM：TPM 2.0 Onboard (optional)

Storage：1*M.2 (Key-M, 2242/2280, SATA SSD) 2*SATA 3.0, 1*CF Card

Expansion Interface：1*M.2 (Key-E, 2230, Wifi, only for C246) 1*M.2 (Key-B, 3042-4G, 3052-5G) 1*PCIe x8 Slot PCH PCIe x4, only for C246 Support one of the following 2 PCIe Side Plug Slot · 1*PCIe x16 Side Plug Slot CPU PCIe x8, PCH PCIe x4, 15*GPIO · 1*PCIe x8 Side Plug Slot CPU PCIe x4

BIOS：AMI UEFI BIOS

System：Windows 10, Linux

I/O Interface

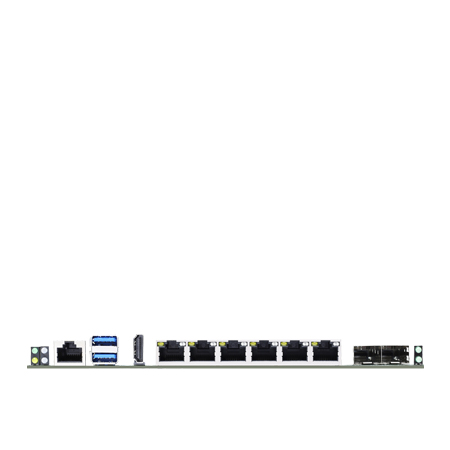

Ethernet：6*Intel^® 1Gbps Ethernet Controller, RJ45 Support 2*Gen3 Lan Bypass 2*Intel^® 1Gbps Ethernet Controller, SFP 2*SFP and PCIe x16 can not be supported at the same time when the chipset is H310

Serial：2*RS232

USB:2*USB 3.0, 2*USB 2.0

PS/2:1*PS/2 Header (Keyboard & Mouse)

GPIO:8 programmable GPIO

Display

Display Interface:1*HDMI: max resolution up to 4096*2160@24Hz 1*VGA: max resolution up to 1920*1200@60Hz

Mechanical & Environment

Dimension:288*207mm

Power Input:ATX PSU

Temperature:Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity:Operation: 10%~90%, Storage: 5%~95%, non-condensing
