LX-19016LP

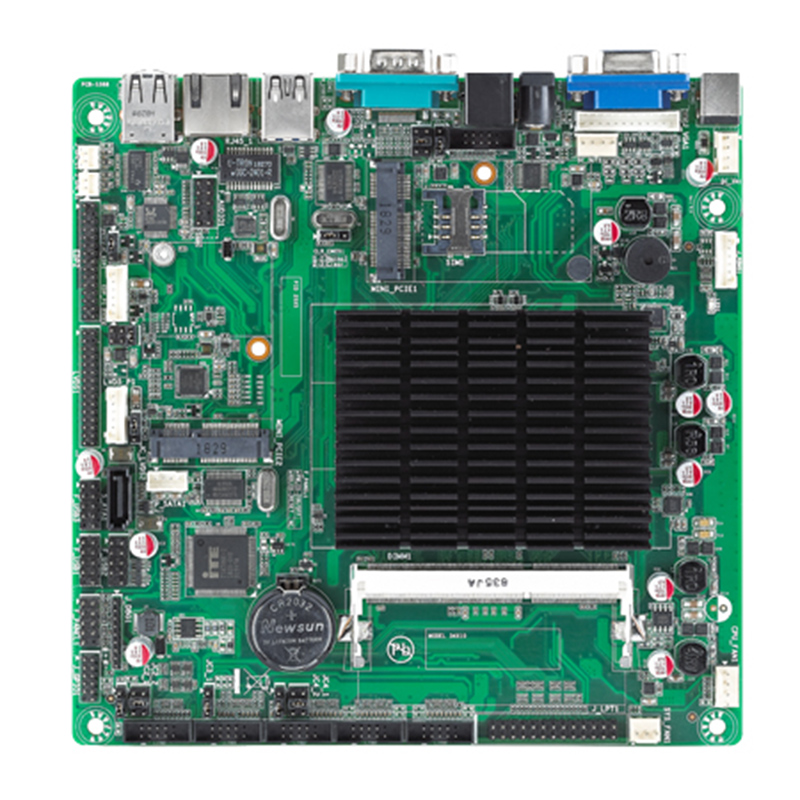

Intel Celeron J1900处理器, 6*COM, 9*USB, 1*LAN, 1*RJ11, 支持双eDP显示, 薄型Mini-ITX

采用Intel Bay Trail Celeron J1900处理器

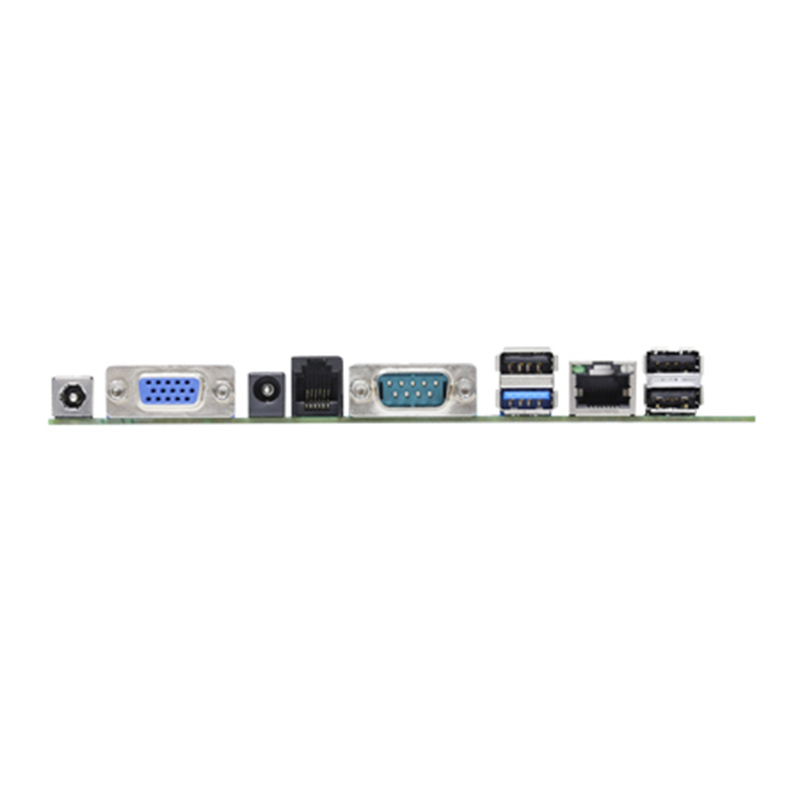

6*COM, 9*USB, 1*千兆网口, 1*钱箱接口RJ11

1*VGA, 1*HDMI/eDP, 1*LVDS/eDP, 支持双eDP独立显示

2*Mini-PCIe支持mSATA和Wifi/3G/4G

薄型Mini-ITX, DC 12V供电

驱动/资料下载

规格

General

CPU:Intel® Celeron® J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W

Memory:DDR3L-1333, 1*SO-DIMM, up to 8 GB

Storage:1*SATA 2.0, 1*mSATA

Expansion Interface:2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)

BIOS:AMI UEFI BIOS

System:Windows 7/8.1/10, Linux

I/O Interface

Ethernet:1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45

Serial:6*RS232

USB:1*USB 3.0, 8*USB 2.0

Audio:Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifier

PS/2:1*PS/2 Header (Keyboard & Mouse)

Parallel:1*LPT Header

GPIO:8*Programmable GPIO

Feature Interface:1*Cash Drawer Control Port, RJ11

Display

Display Interface:1*VGA: max resolution up to 2560*1600@60Hz, 1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz, eDP, max resolution up to 1920*1200@60Hz, 1*HDMI/eDP: HDMI, max resolution up to 1920*1200@60Hz ,eDP, max resolution up to 1920*1200@60Hz

Multiple Display:Dual

Mechanical & Environment

Dimension:170*170mm

Power Input:DC 12V

Temperature Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity Operation: 10%~90%, Storage: 5%~95%, non-condensing
