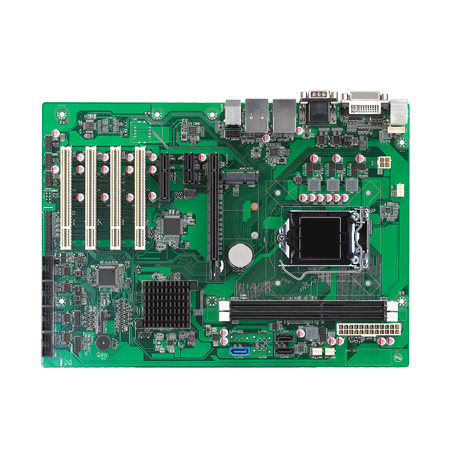

LX- H8134

Intel 4代Core i3/i5/i7处理器, H81芯片, 3*PCIe, 4*PCI, 6*COM, 10*USB, 2*LAN

支持Intel 4代Core i3/i5/i7处理器

采用Intel H81芯片组

6*COM, 10*USB, 2*千兆网口

1*VGA, 1*DVI, 支持双屏异显

1*PCIe x16, 1*PCIe x4, 1*PCIe x1, 4*PCI

1*Mini-PCIe支持mSATA

规格

General

CPU:Intel® 4th Generation CoreTM i3/i5/i7, Pentium®, Celeron® CPU, LGA1150

Chipset:Intel® H81 Chipset, TDP 4.1W

Memory:DDR3-1333/1600, 2*U-DIMM, up to 16 GB

Storage:1*SATA 3.0, 2*SATA 2.0, 1*mSATA

Expansion Interface:1*PCIe x16, 1*PCIe x4, 1*PCIe x1, 4*PCI, 1*Mini-PCIe(mSATA supported)

BIOS:AMI UEFI BIOS

System:Windows 7/8.1/10, Linux

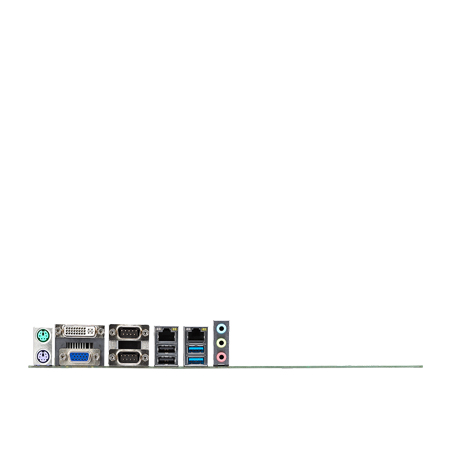

I/O Interface

Ethernet:2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45

Serial:5*RS232, 1*RS232/RS485

USB:2*USB 3.0, 8*USB 2.0

Audio:Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out

PS/2:2*PS/2 Port (Keyboard & Mouse)

Parallel Port:1*LPT Header

GPIO:8*Programmable GPIO

Display

Display Interface:1*VGA: max resolution up to 1920*1200@60Hz,1*DVI: max resolution up to 1920*1200@60Hz

Multiple Display:Dual

Mechanical & Environment

Dimension:305*220mm

Power Input:ATX PSU

Temperature:Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity:Operation: 10%~90%, Storage: 5%~95%, non-condensing
